Description

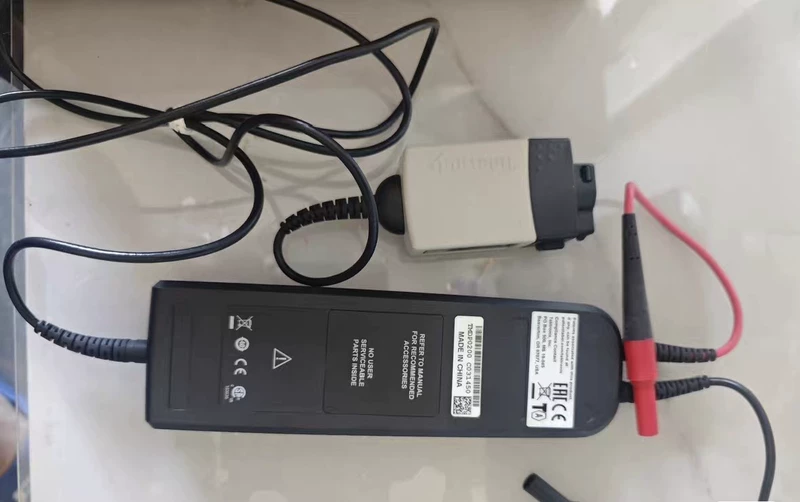

TEKTRONIX TMDP0200
High-bandwidth high-voltage differential probing solution for accurate floating measurements in demanding power electronics environments
| Brand | TEKTRONIX |
| Model | TMDP0200 |
| Voltage | 1500 V DC + Peak AC (Max Differential) |
| Country of Origin | USA |
| Weight | 1.5 kg |
| Dimensions | 230 x 60 x 40 mm |
| Warranty | 6 months |
| Certifications | CE, RoHS, IEC 61010-031 |
| SKU / MPN | TMDP0200 |
| What’s in the box | TMDP0200 Differential Probe, ground lead, hook tips, alligator clips, user manual, calibration certificate |
| Bandwidth | 200 MHz |
| Maximum Differential Voltage | 1500 V DC + Peak AC |
| Attenuation | 50x / 500x (Selectable) |
| Input Impedance | 5 MΩ || 2 pF |
| Rise Time | 1.75 ns |
| Interface | TekVPI |
Key benefits: 200 MHz bandwidth, 1500 V differential range, TekVPI direct oscilloscope interface, switchable attenuation, low input capacitance, excellent common-mode rejection, robust safety ratings
Typical applications: Switch-mode power supply testing, motor drive analysis, power converter development, floating voltage measurements, GaN/SiC device characterization, EV powertrain testing, inverter debugging
Lifecycle: Active product, new condition, full manufacturer warranty
