Description

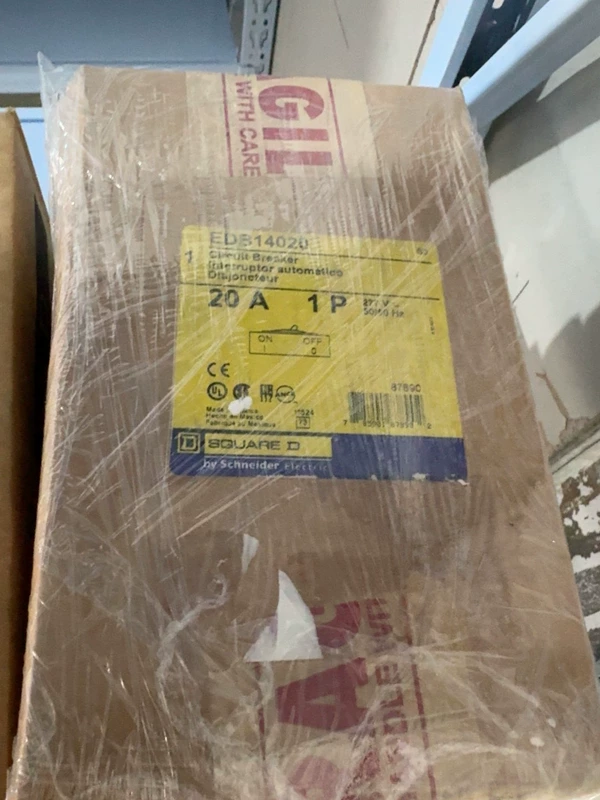

SQUARE D Circuit Breaker EDB14020 – Reliable Power Protec…
Compact, high-performance miniature circuit breaker offering reliable overcurrent protection for branch circuits in commercial and industrial power distribution.
| Brand | Square D |
| Model | EDB14020 |
| Voltage | 277/480V AC |
| Country of Origin | United States |
| Weight | 0.5 lbs |
| Dimensions | 3.0 x 2.0 x 1.5 inches |
| Warranty | 1 year limited warranty |
| Certifications | UL 489, CSA C22.2 No. 5, NEMA AB1 |
| SKU / MPN | EDB14020 |
| What’s in the box | Circuit breaker, mounting clip, line and load connectors, instruction sheet |
| Amperage Rating | 20A |
| Number of Poles | 1 |
| Interrupting Capacity | 14kA at 277V AC, 10kA at 480V AC |
| Frame Type | EDB |
| Trip Unit Type | Thermal-magnetic |
| Terminal Connection | Line and load side lug, #14 to #4 AWG |
Key benefits: High interrupting capacity, thermal-magnetic trip for precise protection, easy plug-on installation, compact size saves panel space, UL listed for safety.
Typical applications: Branch circuit protection in panelboards, lighting panels, motor control centers, and industrial control panels.
Order number: SQUARE D Circuit Breaker EDB14020 – Reliable Power Protec…
Lifecycle: Active, widely available with replacement parts
