Description

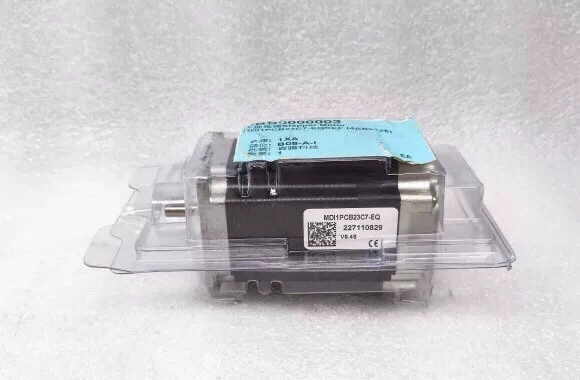

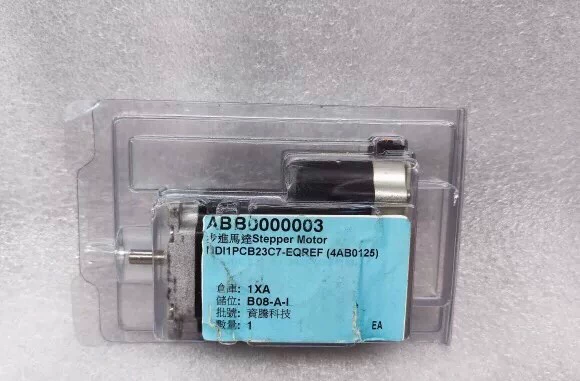

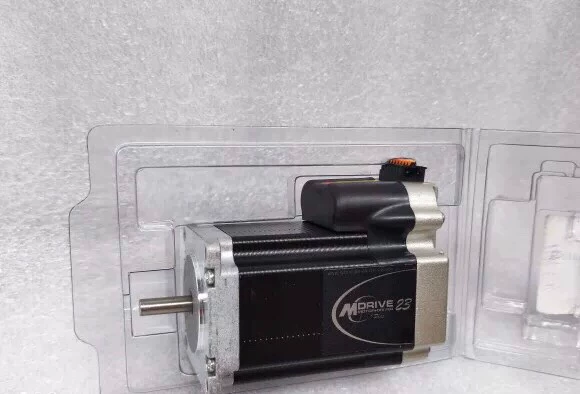

Schneider MDI1PCB23C7-EQREF MDRIVE23
All-in-one NEMA 23 integrated stepper motor combining motor, drive, controller, and encoder in a single compact package for simplified motion control.
| Brand | Schneider |
| Model | MDI1PCB23C7-EQREF MDRIVE23 |
| Voltage | 24-75 V DC |
| Country of Origin | USA |
| Weight | 1.36 kg |
| Dimensions | 56 x 56 x 96 mm |
| Warranty | 24 months |
| Certifications | CE, UL, RoHS |
| SKU / MPN | MDI1PCB23C7-EQREF |
| What’s in the box | MDRIVE23 integrated stepper motor, mating connectors, quick-start guide, configuration software CD |
| Motor Frame Size | NEMA 23 |
| Holding Torque | 2.1 Nm |
| Microstep Resolution | 25600 steps/rev |
| Communication | RS-422/485 Serial |
| Encoder | Internal EQREF encoder feedback |
| Operating Temperature | -20°C to +85°C |
Key benefits: Closed-loop position control, programmable via RS-422/485, eliminates separate drive cabinet, reduces wiring complexity, high microstep resolution, plug-and-play integration, reliable Schneider Electric quality.
Typical applications: CNC machines, 3D printers, laboratory automation, semiconductor handling, packaging machinery, pick-and-place systems, medical devices, textile machinery, and small-format robotics.
Lifecycle: Active product line, expected 10+ years availability with firmware updates supported.
