Description

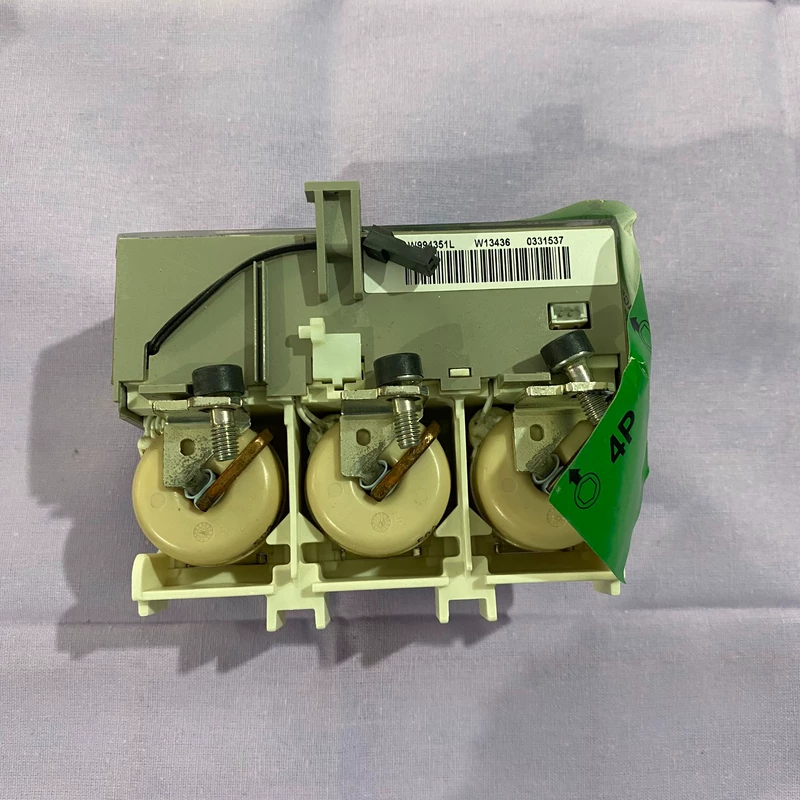

Schneider 29182
Electronic trip unit providing precise 3-zone protection for Masterpact NW air circuit breakers in industrial power distribution
| Brand | Schneider |
| Model | 29182 |
| Voltage | 690V AC |
| Country of Origin | France |
| Weight | 0.5 kg |
| Dimensions | 120x80x60 mm |
| Warranty | 6 months |
| Certifications | IEC 60947-2, UL 489, CSA, CE |
| SKU / MPN | 29182 |
| What’s in the box | Micrologic trip unit, mounting bracket, adjustment tool, installation manual |
| Protection Zones | L (Long Time), I (Instantaneous), S (Short Time) |
| Rated Current Range | 630A to 6300A |
| Display | LED status indicators |
| Power Source | Self-powered from breaker current |
| Adjustability | Adjustable threshold and time delays |
| Compatibility | Masterpact NW circuit breakers |
Key benefits: Self-powered operation eliminates external supply, adjustable protection settings for selective coordination, compact design for easy retrofit, reliable electronic sensing
Typical applications: Industrial power distribution panels, main switchboards, generator protection, motor control centers, data center power systems
Lifecycle: Active product, compatible with Masterpact NW series, 10+ years availability
