Description

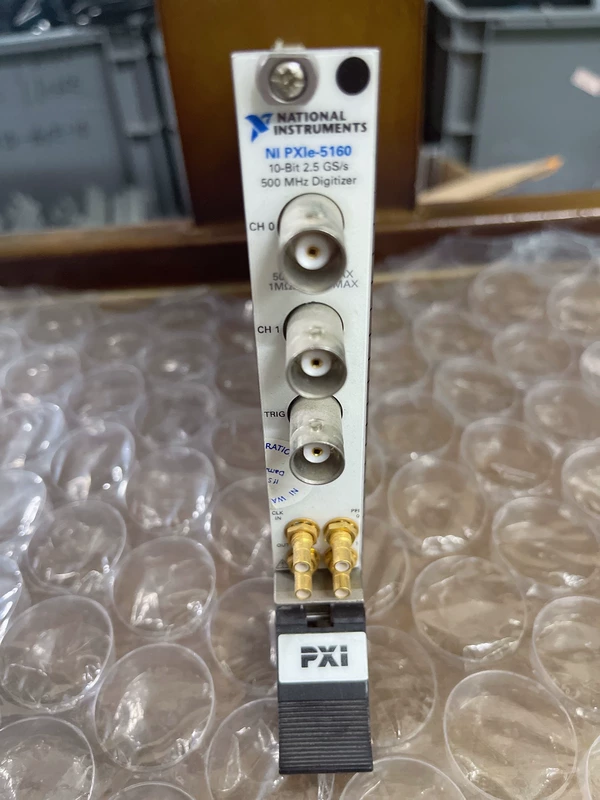

NI PXIe-5160 Oscilloscope Card High-Speed Data Capture
High-speed data capture with wide bandwidth and deep memory for demanding test and measurement applications.
| Brand | National Instruments |
| Model | PXIe-5160 |
| Voltage | 5V DC (via PXIe backplane) |
| Country of Origin | United States |
| Weight | 0.5 kg |
| Dimensions | 21.6 cm x 2.0 cm x 13.0 cm |
| Warranty | 1 year |
| Certifications | CE, FCC, IEC 61010 |
| SKU / MPN | 783516-01 |
| What’s in the box | PXIe-5160 oscilloscope card, software DVD, quick start guide, calibration certificate |
| Bandwidth | 1 GHz |
| Sample Rate | 10 GS/s (single-channel) |
| Resolution | 8 bits |
| Input Range | ±5 V, ±1 V, ±0.2 V |
| Memory Depth | 2 GB per channel |
| Trigger Types | Edge, Pulse Width, Window, Digital, Video |
Key benefits: High sample rate, large onboard memory, flexible triggering, compact PXIe form factor.
Typical applications: High-speed signal analysis, serial bus decoding, RF and communications testing, automated test equipment.
Order number: NI PXIe-5160 Oscilloscope Card High-Speed Data Capture
Lifecycle: Active
Documentation: User manual, datasheet, specifications document, application notes
