Description

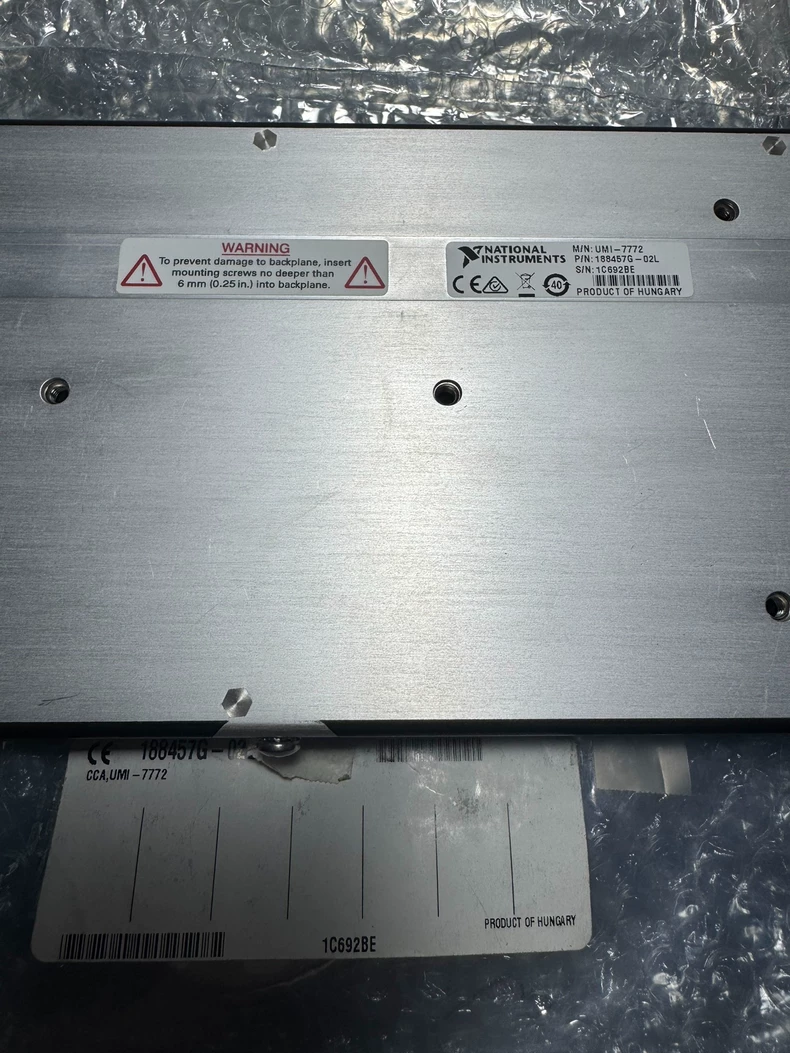

NI UMI-7772 Motion Interface Card for Precision Control
| Manufacturer | National Instruments |
| Part Number | UMI-7772 |
| Power Supply | 24V DC |
| Made in | United States |
| Mass | 0.8 kg |
| Size | 150 x 100 x 40 mm |
| Guarantee Period | 1 year |
| Approvals | CE, FCC, RoHS |
| Catalog Number | UMI-7772 |
| Package Contents | 1x Motion Interface Card, 1x Cable Set, 1x Quick Start Guide |
| Axes Supported | 2 |
| Maximum Step Rate | 1 MHz |
| Encoder Input | Quadrature (A/B/Z) |
| Limit Inputs | 6 (per axis) |
| Output Type | Differential Line Driver |
| Connector Type | 68-pin VHDCI |
Achieve ultra-precise motion control for your automation projects with this reliable interface card that ensures smooth, accurate positioning.
Key benefits: • Dual-axis support for coordinated motion
• High-speed 1 MHz step rate for fast moves
• Built-in limit and home inputs for safety
• Differential outputs reduce noise interference
• Easy integration with NI motion controllers
Typical applications: CNC machines, robotic arms, pick-and-place systems, precision stage positioning
Lifecycle: Active
