Description
MOOG G761-3008B H19JOGM4VPH
High-performance direct-operated servo valve for precision hydraulic control in demanding industrial applications
| Brand | MOOG |
| Model | G761-3008B H19JOGM4VPH |
| Voltage | 24V DC, ±10V command signal |
| Country of Origin | USA |
| Weight | 2.4 kg |
| Dimensions | 170 x 60 x 60 mm |
| Warranty | 12 months |
| Certifications | CE, ISO 9001, RoHS |
| SKU / MPN | G761-3008B H19JOGM4VPH |

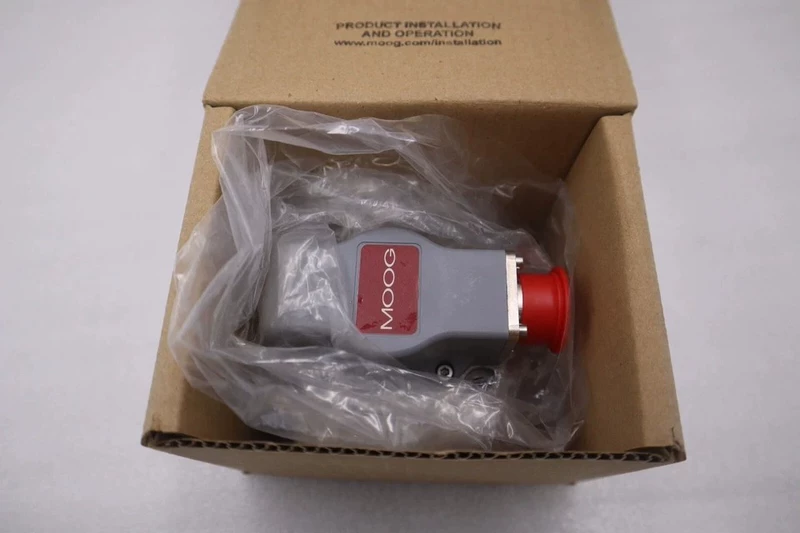

| What’s in the box | MOOG G761-3008B Servo Valve, factory test certificate, installation manual |
| Valve Type | 4-way electrohydraulic servo valve |
| Rated Flow | 30 L/min at 70 bar ΔP |
| Max Operating Pressure | 350 bar |
| Step Response | <5 ms |
| Frequency Response | 100 Hz (-90°) |
| Mounting | Subplate / Manifold (ISO 4401-03) |
Key benefits: Ultra-fast response time, exceptional linearity and resolution, robust construction for harsh environments, long service life with high reliability, low hysteresis, integrated electronics
Typical applications: Injection molding machines, machine tools, paper and steel mills, simulators and test rigs, marine steering systems, oil and gas flow control, precision hydraulic actuation
Lifecycle: Active production, 15+ years of availability with full support
