Description

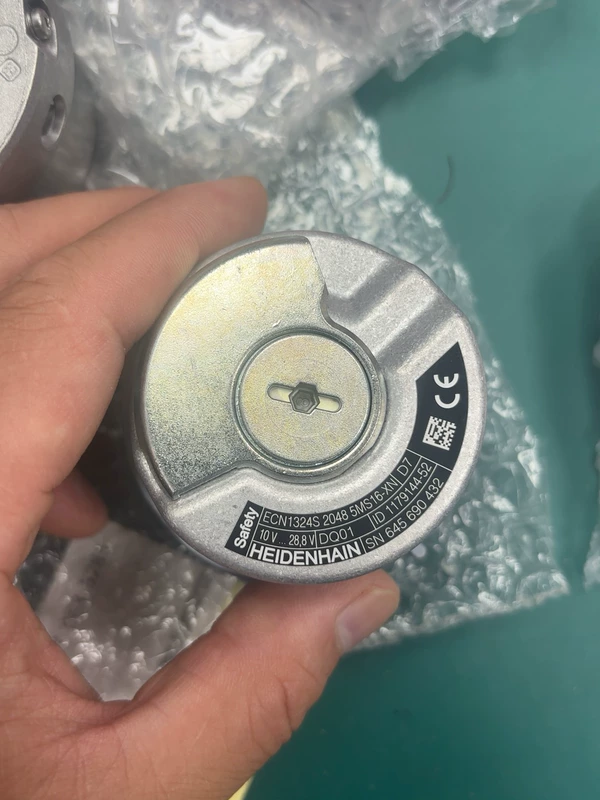

Heidenhain ECN1324S Encoder for Accurate Position Feedback
| Manufacturer | Heidenhain |
| Part Number | ECN1324S |
| Power Supply | 5V DC |
| Made in | Germany |
| Mass | 0.55 lbs |
| Size | 2.5 x 2.5 x 1.5 inches |
| Guarantee Period | 2 Years Manufacturer Warranty |
| Approvals | CE, RoHS, ISO 9001 |
| Catalog Number | ECN1324S |
| Package Contents | 1 Encoder Unit, 1 Mounting Kit, 1 Connector Cable, 1 Installation Guide |
| Resolution | 2048 lines per revolution |
| Output Signal | Incremental (TTL) |
| Shaft Diameter | 12 mm |
| Max Operating Speed | 12000 rpm |
| Protection Rating | IP64 |
| Operating Temperature | -40°C to +100°C |
Ensure precise position feedback in demanding automation environments with this high-resolution Heidenhain encoder, trusted for reliability and accuracy.
Key benefits: • High resolution for ultra-precise motion control
• Robust design withstands harsh industrial conditions
• Easy installation with included mounting kit
• Reliable signal output for consistent performance
• Backed by Heidenhain's reputation for quality
Typical applications: CNC machines, robotics, servo motors, printing presses, and automated assembly lines.
Lifecycle: Engineered for extended service life in industrial settings; typical lifespan of 5-10 years depending on operating conditions.
