Description

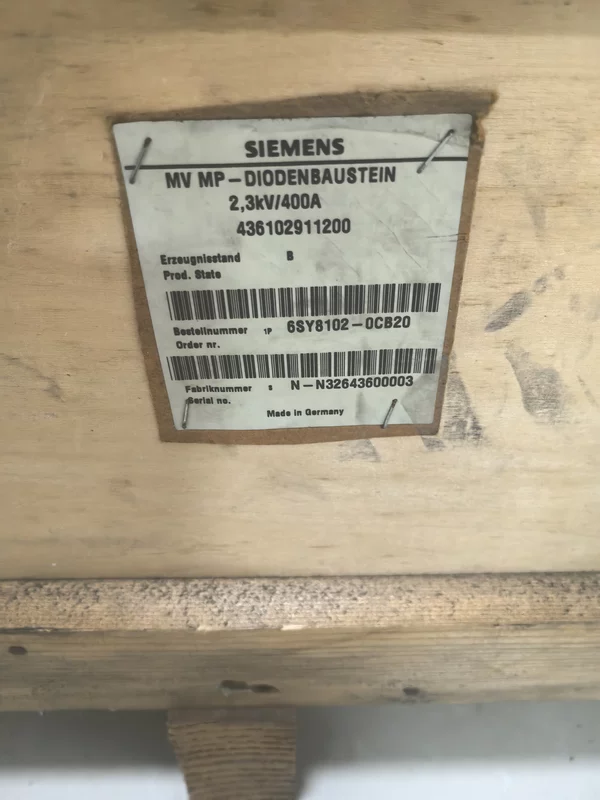

Siemens 6SY8102-0CB20
Reliable rectification and freewheeling diode module engineered for Siemens drive systems, ensuring robust performance in demanding industrial DC power applications
| Brand | Siemens |
| Model | 6SY8102-0CB20 |
| Voltage | Up to 1600V DC (repetitive peak reverse voltage) |
| Country of Origin | Germany |
| Weight | 0.35 kg |
| Dimensions | 90x70x35 mm |
| Warranty | 6 months |
| Certifications | CE, UL recognized, RoHS compliant |
| SKU / MPN | 6SY8102-0CB20 |
| What’s in the box | 1x Siemens 6SY8102-0CB20 diode module, installation instructions |
| Module Type | Diode module for SIMOREG/SINAMICS DC drive systems |
| Rated Current | 200 A |
| Forward Voltage Drop | Approx. 0.85 V at rated current |
| Isolation Voltage | 2500 V AC (1 min) |
| Cooling Method | Heatsink-mounted, forced air or natural convection |
Key benefits: High surge current capability, low forward voltage drop for reduced losses, robust construction for harsh environments, easy integration with Siemens SIMOREG and SINAMICS platforms, long service life
Typical applications: DC motor drives, rectifier circuits in SIMOREG converters, freewheeling and clamping in power converters, industrial power supplies, electrolysis and galvanic processes
Lifecycle: Active product, long-term availability through Siemens lifecycle support
