Description

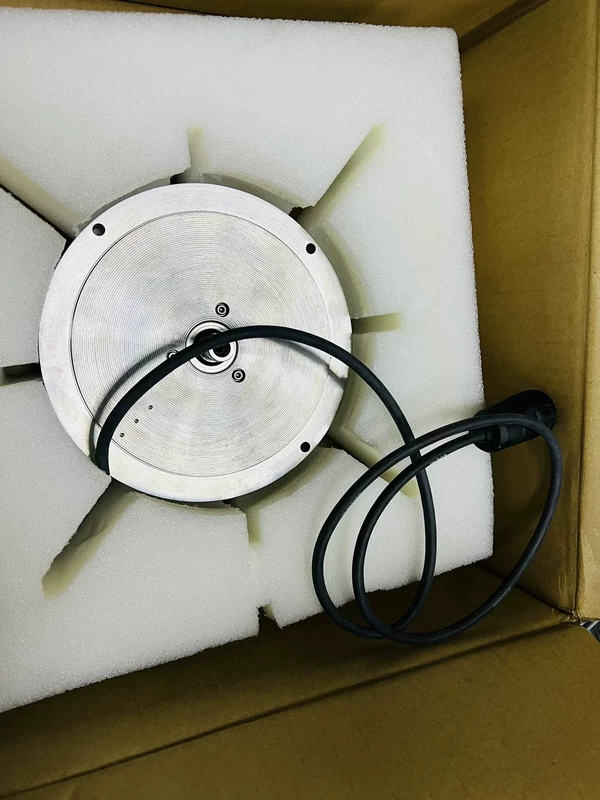

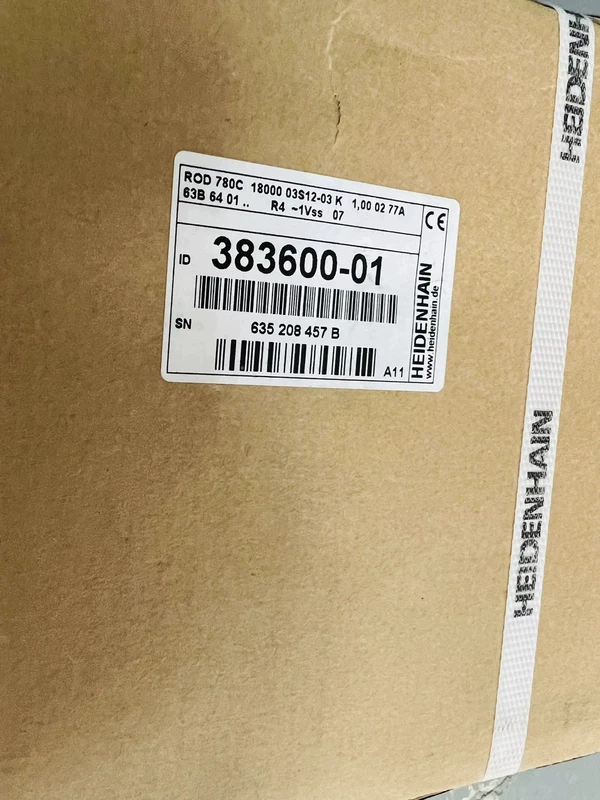

HEIDENHAIN ROD 780C 18000 03S12-03 383600-01
High-precision rotary encoder for demanding speed and position feedback in servo drives and machine tools
| Brand | HEIDENHAIN |
| Model | ROD 780C 18000 03S12-03 383600-01 |
| Voltage | 5V ± 10% |
| Country of Origin | Germany |
| Weight | 0.8 kg |
| Dimensions | 78 mm diameter x 45 mm height |
| Warranty | 24 months |
| Certifications | CE, UL, RoHS |
| SKU / MPN | 383600-01 |
| What’s in the box | Rotary encoder, mounting screw set, manual |
| Resolution | 18000 lines per revolution |
| Output Signal | Sinusoidal 1 Vpp |
| Max Operating Speed | 12000 rpm |
| Shaft Type | Solid shaft, 12 mm diameter |
| Protection Class | IP40 (IP64 with sealing) |
| Operating Temperature | -10°C to +100°C |
Key benefits: Ultra-high resolution 18000 lines, robust design, reliable signal integrity, easy installation, long service life
Typical applications: CNC machine tools, servo motor feedback, robotics, precision motion control, printing machines
Lifecycle: Active product, 10+ years availability and support
