Description

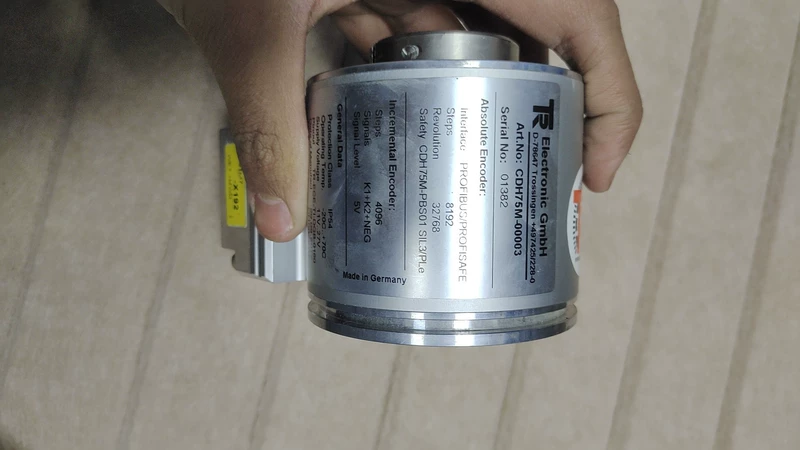

TR Encoder CDH75M-00003 01382: High-Speed Performance
| Manufacturer | TR Encoder |
| Part Number | CDH75M-00003 01382 |
| Power Supply | 10-30V DC |
| Made in | Germany |
| Mass | 0.45 kg |
| Size | 75mm x 75mm x 45mm |
| Guarantee Period | 2 years |
| Approvals | CE, RoHS, UL |
| Catalog Number | CDH75M-00003-01382 |
| Package Contents | 1x TR Encoder CDH75M, 1x Connector Kit, 1x Quick Start Guide |
| Resolution | 2500 PPR |
| Output Type | HTL (Push-Pull) |
| Shaft Diameter | 10mm |
| Protection Rating | IP65 |
| Operating Temperature | -20°C to +70°C |
| Max Speed | 5000 RPM |
Boost your system's high-speed performance with the TR Encoder CDH75M, engineered for rapid motion applications. With 2500 PPR resolution and robust HTL output, it delivers precise feedback even at high rotational speeds, ensuring optimal efficiency in demanding automation setups.
Key benefits: • High-speed capability up to 5000 RPM for dynamic applications
• 2500 PPR resolution for fine position detection
• HTL output for long-distance signal transmission
• Durable IP65 construction for industrial environments
• UL certified for safety compliance
Typical applications: High-speed packaging lines, printing presses, textile machinery, elevator systems, material handling
Lifecycle: Active
