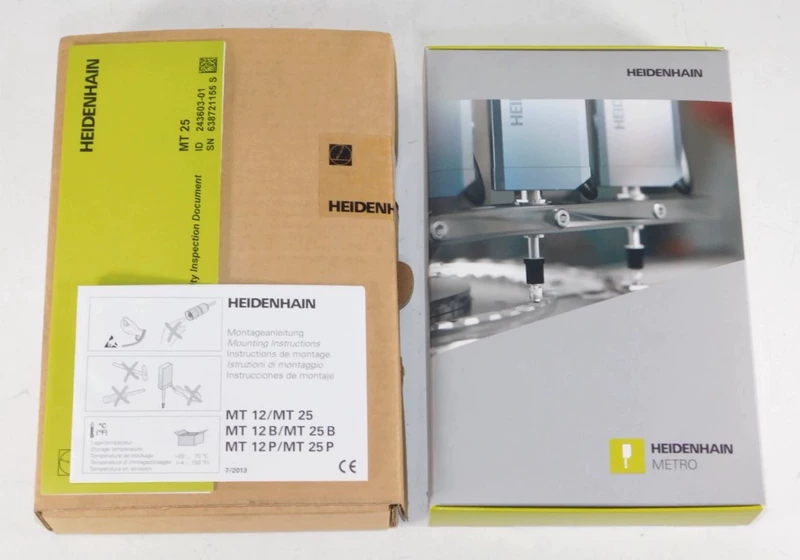

HEIDENHAIN Linear Incremental Length Gauge MT 25 Model Tool
Achieve sub-micron precision in length measurement with the HEIDENHAIN MT 25, a robust linear incremental gauge engineered for high-accuracy feedback in demanding automation and quality control environments.
| Brand | HEIDENHAIN |
| Model | MT 25 |
| Voltage | 5V ±5% |
| Country of Origin | Germany |
| Weight | 0.35 kg |
| Dimensions | 30 mm x 30 mm x 120 mm |
| Warranty | 2 years |
| Certifications | CE, RoHS, ISO 9001 |
| SKU / MPN | HEID-MT25-001 |
| What’s in the box | 1x HEIDENHAIN MT 25 Linear Incremental Length Gauge, 1x Mounting Bracket, 1x 2m Cable with D-Sub Connector, 1x Calibration Certificate |
| Measuring Range | 25 mm |
| Accuracy Grade | ±1 m |
| Resolution | 0.1 m |
| Output Signal | TTL incremental (RS422) |
| Max Traversing Speed | 1 m/s |
| Protection Class | IP40 (IEC 60529) |
Key benefits: Exceptional ±1 m accuracy ensures reliable measurements; 0.1 m resolution enables fine detail capture; robust IP40 housing withstands industrial debris; TTL RS422 output integrates seamlessly with PLCs and CNCs; German engineering guarantees long-term stability and repeatability.
Typical applications: Precision length measurement in CNC machine tools; quality assurance in automotive component manufacturing; feedback for linear motion systems in robotics; calibration of gauges and fixtures; semiconductor wafer positioning.
Order number: HEIDENHAIN Linear Incremental Length Gauge MT 25 Model Tool
Lifecycle: Active
